ADI- Data conversion IC

ADI's data conversion IC series is rich and diverse, here are some common series:

Analog-to-Digital Converters (ADC) Series

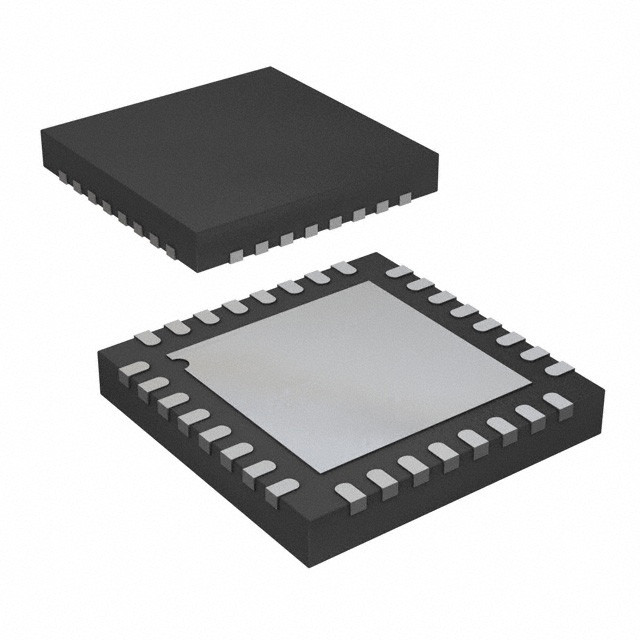

- AD7124 Series: Such as AD7124-8BCPZ-RL7, it is a 15-channel single ADC, 24-bit Σ-Δ type analog-to-digital converter, packaged in a 32-pin LFCSP. It features low power consumption and low noise, configurable as 8 differential inputs or 15 single-ended/pseudo-differential inputs, integrating multiple functions including programmable low-drift excitation current sources, burn-in current, bias voltage generators, etc., suitable for high-precision measurement applications such as temperature measurement, pressure measurement, industrial process control, etc.

- AD7621 Series: For example, AD7621ASTZ, is a high-speed, 16-bit successive approximation analog-to-digital converter with a parallel interface, capable of completing high-precision analog-to-digital conversion in a short time, suitable for systems that require rapid acquisition of analog signals, such as data acquisition cards, medical imaging devices, etc.

- AD2S80 Series: Such as AD2S80ASD/883B, it is a resolver-to-digital converter, where users can select resolution and dynamic performance through external components, capable of tracking resolver signals up to 1040 revolutions per second, suitable for motor control, robotics, and other fields that require converting resolver signals into digital signals.

- AD9226 Series: Belongs to the high-speed analog-to-digital converter, with a sampling rate up to 65MSPS, featuring 12-bit resolution, powered by a single power supply, integrating a sample-and-hold amplifier and reference voltage source internally, applicable to systems with high signal acquisition speed requirements such as communication, radar, video, etc.

- AD9625 Series: It is a 12-bit, 170MSPS/250MSPS analog-to-digital converter with excellent linearity and dynamic performance, featuring a JESD204B interface that enables high-speed data transfer, suitable for high-speed signal processing applications such as communication base stations, software-defined radio, etc.

Digital-to-Analog Converters (DAC) Series

- AD9142 Series: Such as AD9142BCPZ, it is a dual-channel, 16-bit, high dynamic range digital-to-analog converter, suitable for communication, radar, and other fields that require high-performance digital-to-analog conversion, capable of precisely converting digital signals into analog signals, providing a high-quality analog signal source for subsequent signal processing.

- AD5501/AD5504 Series: AD5501 is a single-channel, and AD5504 is a four-channel high-voltage DAC, both integrating a 12-bit DAC, on-chip high-voltage output amplifier, and precision reference voltage source, as well as a temperature sensor with alarm function, featuring power-saving characteristics, providing pin-selectable 0V~30V or 0V~60V output ranges, suitable for industrial control, instrumentation, and other applications that require high-voltage output.

- AD5502 Series: It is a single-channel 16-bit resolution DAC with software-programmable output ranges up to 40V, built-in 5ppm/°C reference voltage source, packaged in a 24-pin TSSOP, capable of meeting application scenarios with high requirements for DAC resolution and output range.

- LTC2688 Series: It is a 16-bit, eight-channel digital-to-analog converter, characterized by low power consumption and high precision, communicating with microcontrollers via SPI interface, applicable to industrial automation, instrumentation, medical equipment, and other fields for precise control of multiple analog signals.
